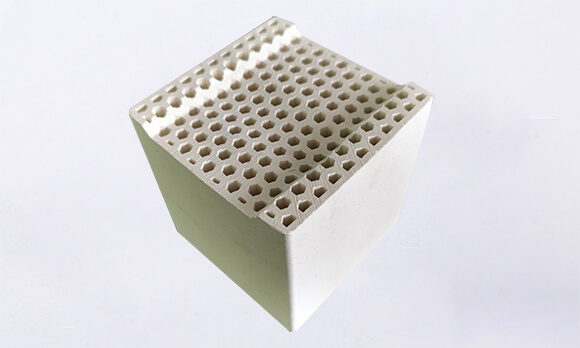

Honeycomb Ceramic

The new material honeycomb ceramic series products are the best material in the environmental protection industry. It is widely used for industrial waste gas, wastewater purification, garbage incineration, and other equipment. Honeycomb ceramics are used as heat accumulators and are mainly used in RTO heat recovery devices. As a catalyst carrier, honeycomb ceramics are mainly used for automobile exhaust purification and air deodorization, such as automobile exhaust catalytic converters. As a filter, honeycomb ceramics are mainly used in food, metallurgy, and other industries to filter particles in gas, impurities or bubbles in molten metal, and dust in various industrial waste gas.

Send us your requirements, we will provide the best solution for you!



  • Large specific surface area
  • High compressive strength
  • Small coefficient of thermal expansion
  • Good water absorption consistency
  • Good thermal shock resistance
  • Can be impregnated with various catalysts


The following is the parameter information of the Honeycomb Ceramic we mainly produce. If you have other needs, pls do not hesitate to contact with us.

Item Honeycomb ceramic
Quantity of channels 5*5 13*13 20*20 25*25 40*40 50*50
Pore size(mm) 26.3 9.2 6.4 4.9 3.0 2.3
Wall thickness(mm) 2 1.5 1.2 1.0 0.7 0.7
Surface area(m2/m3) 117 278 455 540 825 1005
Size(mm) Common type:150*150*600/450/300/150/100/50; Others:100*100*100


According to applications, honeycomb ceramic products can be divided into four categories: heat storage body, filler, catalyst carrier and water filter material.
Since the specific heat capacity of honeycomb ceramic products can reach more than 1000J/kgk, the maximum use temperature of the product is over 1700℃. It can be used as a regenerator in heating furnaces, roasters, soaking furnaces, cracking furnaces and other kilns, which can save fuel up to 40% and the output will be increased by more than 15%. The exhaust gas temperature will be lower than 150℃.
Compared with other shapes, the honeycomb ceramic packing has the advantages of larger specific surface area and better strength, which can make the vapor-liquid distribution more uniform, reduce bed resistance, better effect, and extend the service life. It is used in petrochemical, pharmaceutical and fine chemical industries and has obtained a good effect.
Honeycomb ceramic material can be as the catalyst carrier, adopts the unique coating, impregnated with precious metals, such as platinum and palladium, which can effectively improve the catalytic activity, thermal stability, service life and strength of the product.
As the water media, honeycomb ceramic has the advantages of good chemical stability, high acid and alkali resistance and organic solvents, excellent thermal shock resistance, and the working temperature can be as high as 1000 ℃. The honeycomb ceramic body has a large specific surface area, which improves the ability of the filter to absorb and capture fine impurities.
It has a better filtering effect than traditional porous ceramics.
